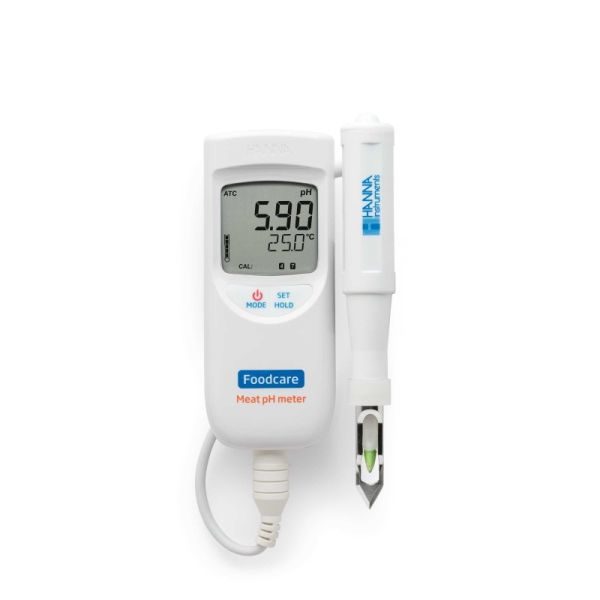

Hanna HI-99163 pH Meter for Meat
The Hanna HI-99163 is a portable pH and temperature meter with a special probe, dedicated to the measurement of pH in meat processing.
Product Details
The HI-99163 has a waterproof and compact casing, large dual-line display, and automatic pH calibration at one or two points. The meter works at cold store operating temperatures to 0°C.
A reliable pH measurement is an important factor in the field of meat science. pH affects many quality factors including colour, grading, tenderness, texture and process characteristics. A direct measurement of muscle pH, deep in the muscle is the best way to determine the pH of the muscle.
HI-99163 is a portable pH and temperature meter with a special probe dedicated to the measurement of pH in meat processing. The HI-99163 has a waterproof and compact casing, large dual-line display, and automatic pH calibration at one or two points. The meter works at cold store operating temperatures to 0°C
The FC2323 probe has been specially designed for meat processing and can accommodate a removable stainless steel knife for meat/muscle penetration (FC099 bought separately).
The FC2323 is a penetration style pH electrode with a conical sensing tip and features an easy to clean, PVDF body and single junction gel filled reference with a free diffusion sleeve style reference junction.
A built-in temperature sensor allows simultaneous temperature compensated pH and temperature readings and an integral pH sensor pre-amplifier provides measurement impervious to noise and electrical interferences often experienced at cold temperatures with conventional pH equipment.
The FC2323 electrode and the stainless steel pointed blade, together with the HI-99163 pH meter are ready for portable pH measurements in intact muscle in meat processing operations.
This Product is Supplied with the following:
- FC2323 amplified pH/temperature probe and stainless steel blade (FC099), DIN Connector and 1m cable.
- pH 4.01 & 7.01 buffer sachet.
- HI-700630 grease and fats acid cleaning solution (2 sachets).
- 100ml beaker (1).
- Alkaline batteries: 1.5V AAA x 3 = approx. 1,400 hours.
- Rugged carrying case.
- Calibration certificate of meter & probe and instruction manual.
Product Specs
- The pH range: -2.00 to 16.00 pH
- Accuracy: ±0.02 pH; Temperature ±0.5°C (up to 60°C); ±1.0°C (outside)
- Environment: 0 to 50°C; RH max. 100%
- Dimensions: 154 x 63 x 30 mm Weight: 196g
* Replaceable Electrode – No need to replace the whole meter when the electrode needs replacing. Spare and replacement electrodes are available for this product. *
